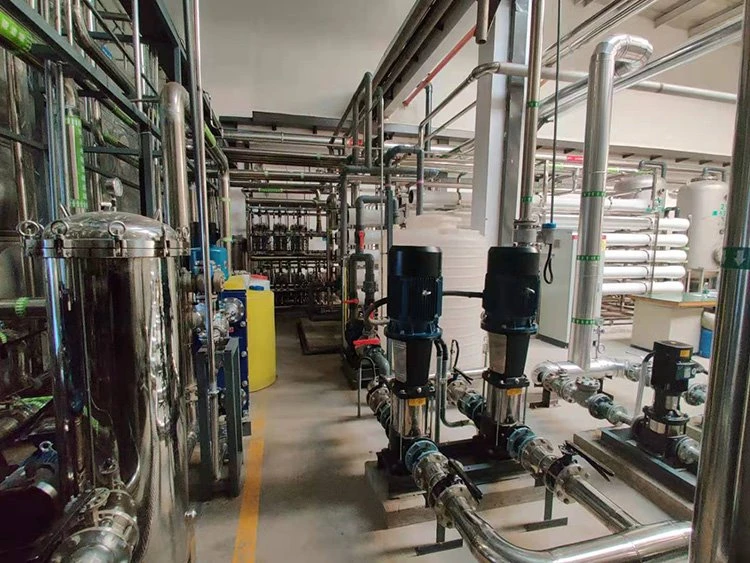

A DM Cog (Demineralized Water Plant) nyob rau hauv lub thermal fais fab nroj tsuag yog ib tug kev kho dej system tsim los tsim high- dej purity dawb los ntawm yaj ntsev, minerals, thiab impurities. Cov dej lim dej no tsuas yog siv los ua boiler feedwater rau generating chav nyob rau hauv fais fab nroj tsuag boilers thiab turbines.
High-siab boilers siv nyob rau hauv thermal fais fab nroj tsuag xav tau dej ntshiab heev. Yog tias siv dej tsis kho, cov zaub mov xws li calcium, magnesium, silica, thiab chlorides tuaj yeem ua rau scaling, corrosion, thiab deposits, uas txo efficiency thiab tej zaum yuav ua rau cov khoom tseem ceeb.
Lub hom phiaj ntawm DM Plant nyob rau hauv Thermal Power Plant
Lub hom phiaj tseem ceeb ntawm cov nroj tsuag DM yog muab ultra{0}} dej ntshiab rau lub boiler system. Qhov no yuav pab tau:
- Tiv thaiv kev tsim cov nplai hauv boilers thiab chav turbines
- Txo corrosion hauv cov kav dej thiab cov khoom siv
- Txhim kho kev hloov pauv hluav taws xob hauv cov boilers
- Ua kom siab purity siab
- Txuas lub boiler thiab turbine lub neej
Hom Txheej Txheem Configuration
Raw Dej Tank → Pub Pump → Multimedia Sand Lim → Activated Carbon Filter → Water Softener (Optional) → Cartridge Filter → Reverse Osmosis Unit (Optional) → Cation Exchange Unit → Degasser Ntauwd → Anion Exchange Unit → Mixed Bed Polisher → DM Water Storage Tank Pump
Technical Specifications
|
Yam khoom |
Specification |
|
System Hom |
Ion Txauv Demineralization (RO + IX yeem) |
|
Pub Dej Qhov Chaw |
Municipal / Nto Dej / av hauv av |
|
Muaj Peev Xwm Ntau Lawm |
5 - 500 m³ / h (customizable) |
|
Kev Ua Haujlwm Siab |
0.2-0.6MPa |
|
Fais fab mov |
380V / 50Hz / 3 Phase (customizable) |
|
Ua haujlwm kub |
5-45 degree |
|
Qhov System Recovery Rate |
65 – 85% |
Tso zis dej zoo ntawm DM Cog nyob rau hauv Thermal Power Plant
|
Parameter |
Tus nqi |
|
Kev coj ua |
Tsawg dua lossis sib npaug li 0.2 µS / cm |
|
Silica |
Tsawg dua lossis sib npaug li 0.02 ppm |
|
Sodium |
Tsawg dua lossis sib npaug li 0.01 ppm |
|
Total Dissolved Solids (TDS) |
Zero |
|
Hardness |
Tsawg dua lossis sib npaug 0.01 mmol / L |
|
Chloride |
Ultra{0}} qis |
Dej zoo raws li qhov siab -siab boiler feedwater yuav tsum.
Main System Cheebtsam
Ntu Kev Kho Mob
- Raw dej cia tank
- Pub dej twj tso kua mis
- Multimedia xuab zeb lim
- Activated carbon lim
- Dej softener (yeem)
- Cartridge lim (5 µm)
Ntu Kev Kho Mob Thawj
- Rov qab osmosis unit (yeem)
- Siab - lub twj tso kua mis
- RO membrane modules
Demineralization Tshooj
- Cation exchange nkoj
- Degasser ntauwd
- Anion pauv nkoj
- Mixed - txaj polishing unit
Tshaj tawm -Kev kho thiab khaws cia
- DM dej cia tank
- Hloov cov twj tso kua mis
- Online conductivity meter
Tswj System
- Tsis siv neeg valve ua haujlwm
- PLC tswj qhov system nrog kov npo (yeem)
- Online conductivity xyuas
- Flow meters thiab siab ntsuas
- Tsis siv neeg regeneration tswj
Khoom siv ntawm kev tsim kho
|
Cheebtsam |
Khoom siv |
|
Lim cov nkoj |
FRP / Carbon hlau / Stainless hlau |
|
Piping |
UPVC / SS304 / SS316 |
|
Membrane Tsev |
FRP / Stainless hlau |
|
Tus Qauv Ncej |
Painted carbon hlau los yog stainless hlau |
Daim ntawv thov hauv Thermal Power Plants
- Boiler feedwater npaj
- Steam tiam systems
- Kev ua haujlwm turbine
- Kev pleev xim dej txias
- Fais fab nroj tsuag txheej txheem dej
Qhov zoo
- Ua tau ultra- ntshiab boiler feedwater
- Tiv thaiv kom tsis txhob scale tsim nyob rau hauv boilers
- Txo corrosion hauv pipelines thiab turbines
- Txhim kho cov cua kub hloov efficiency
- Extens khoom siv lub neej
- Kev ua haujlwm ruaj khov thiab txhim khu kev qha
Kev hloov kho tshiab
- Muab ob npaug rau- dhau RO pretreatment
- Electrodeionization (EDI) qhov system
- UV sterilization system
- Chaw taws teeb saib xyuas thiab automation
- Skid{0}}mounted compact tsim
Cov xwm txheej zoo
Peb Qhov Kev Pabcuam
a.Peb muab kev txhawb nqa tag nrho thiab tom qab kev teeb tsa cov khoom siv.
b.Peb pab qhia tus neeg teb xov tooj ntawm qhov system. Thiab cov ncauj lus kom ntxaws kev khiav hauj lwm phau ntawv yog muab.
c.7 * 24 teev kev pab hauv xov tooj ntawm kev txhawb nqa.
d.Peb muab cov khoom siv thiab cov khoom seem hauv lub sijhawm ntev - rau tus nqi.
lav
a.Txhua lub tshuab xa mus rau cov neeg siv khoom tau ua tib zoo tshuaj xyuas thiab kuaj cov yeeb nkab.
b.Txhua lub tshuab txaus siab rau 12 lub hlis lav txij li hnub B / L.
